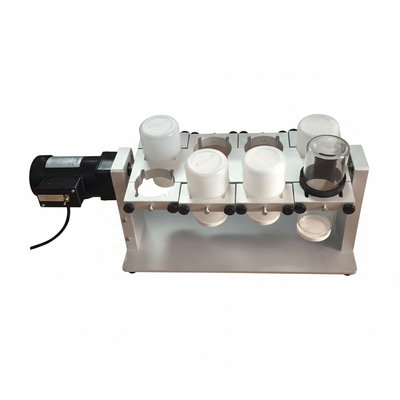

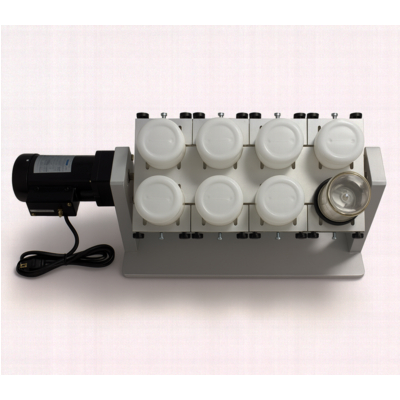

DC-20-240 Rotary Agitators

Analytical Testing Model DC20-240 Rotary Agitators are used for evaluating the mobility of regulated compounds for EPA test method 1311 TCLP (Toxicity Characteristic Leaching Procedure) and other leaching procedures listed in EPA SW-846.

VERSALTILITY
The DC20-240 agitators are sized for two liter borosilicate glass, Teflon and plastic bottles. Agitators will hold most manufacturers ZHE’s including our model C-102 Zero Headspace Extractor.

CONSTRUCTION
Oversized1/6 HP Bodine Electric fan cooled 30 RPM gear motor rated for continuous duty operation. Solid aluminum rotary bar and frame balanced for quiet operation. Variable speed models available with Bodine DC motors and speed controllers.

PERFORMANCE AND SAFETY
DC-20 agitators allow for secure vertical loading of bottles or extractors. The oversized single stage gear motor allows for free rotation and does not require reset brakes or jog switches. Samples may be vented or pH adjusted without removing bottles from agitator. Optional Safety shield available for all sizes.

CONFIDENCE
The Analytical Testing Rotary Agitators have been approved by USEPA and are in service in hundreds of government, industrial and commercial laboratories worldwide.
