TubeRoller

Speed:

Fixed, 38 rpm (+/- 10%)

Tilt Angle:

+/- 5°

Motion:

Simultaneous roll & tilt

Operating Temp. Range

+4 to +40°C

Dimensions:

(w x d x h)

R3005: 18 x 7 x 3.5in. / 45 x 18 x 9 cm

R3010: 18 x 14 x 3.5 in./ 45x 36 x 9 cm

Number of Rollers:

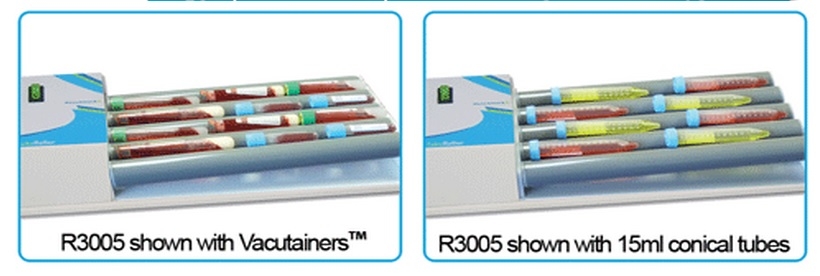

R3005: 5 / R3010: 10

Weight:

R3005: 5kg (11bs) / R3010: 8kg (17.6lbs)

Roller Dimensions::

12 x 12.5 in. / 3 x 32 cm

Vessels Accepted::

8mm to 200mm (diameter)

Roller Spacing:

5mm (rollers are on 35mm centers)

Electrical:

115V or 230V, 50-60Hz
