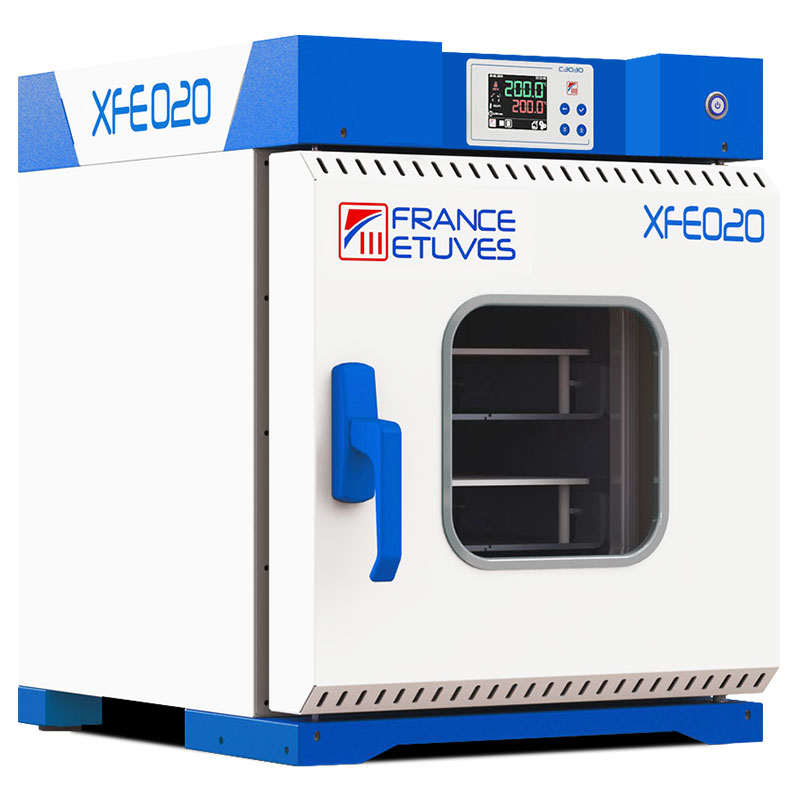

Vacuum ovens XFE020

Vacuum ovens

Model: XFE020

Performances
Maximum temperature : 200 °C (300°C as option)
Minimum temperature : Ambient temperature + 20°C
Temperature fluctuation : < ± 0.2 °C
Vacuum control accuracy : ⩽ 2 mbar (according to your vacuum pump)

Vacuum data
Vacuum range : up to -1000 mbar (relative pressure) or 1 mbar (absolute pressure)
Sensor : Piezo
Vacuum measurement range : 0 to -1000 mbar

Sizes*
Working volume : 20 liters
Internal sizes (W x D x H) : 250 x 320 x 250 mm
External sizes (W x D x H) : 510 x 575 x 610 mm
Thickness of the glass window : 10 mm
* Some options may change the sizes of the oven

Trays made of aluminium
Number : 1 delivered / 4 maximum inside the oven
Tray sizes : 224 x 280 mm
Working tray sizes : 216 x 280 mm
Maximum load per tray : 30 kg
Maximum load in the oven : 60 kg (trays weight not included)

Electrical data & others
Power : 230V ~1P 50Hz 16A
Heating power : 800 W
Total installed power with vacuum pump : 1950 W
Door number : 1
Weight : 60 kg

Standard vacuum pump model recommended : DVP RC4D
