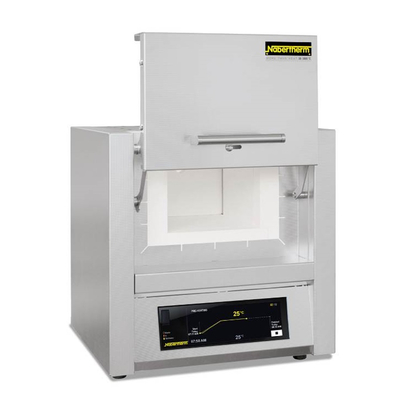

Nabertherm LT 5/11 Furnace

Technical specifications

Inner dimensions (w x d x h): 205 x 170 x 130 mm

Work space (w x d x h): 170 x 80 x 80 mm

defined space inside furnace in which the temperature uniformity is valid

Outer dimensions (W x D x H): 385 x 390 x 460 mm

Outer dimensions may vary depending on additional equipment and accessories.

Exact dimensions on request.

Temperature uniformity: ± 5 K at T > 800 °C

Value according to DIN 17052-1 in the empty work space

with closed air inlet

Accessories can affect the temperature uniformity, e.g. gas flow or vent with fan.

Volume: 15 l

Weight: 40 kg

Tmax: 1,100 °C

Continuous operation at maximum temperature can lead to increased wear of the heating elements, thermocouples or isolation. We recommend operation at approx. 50 °C below the maximum temperature.

Thermocouple type: type N

Max. power rating: 2.6 kW

Connection (electr.): 220 - 240 V, 1/N/PE, 2/PE, 50/60 Hz
