Freeze Dryer Sublimator 100EKS

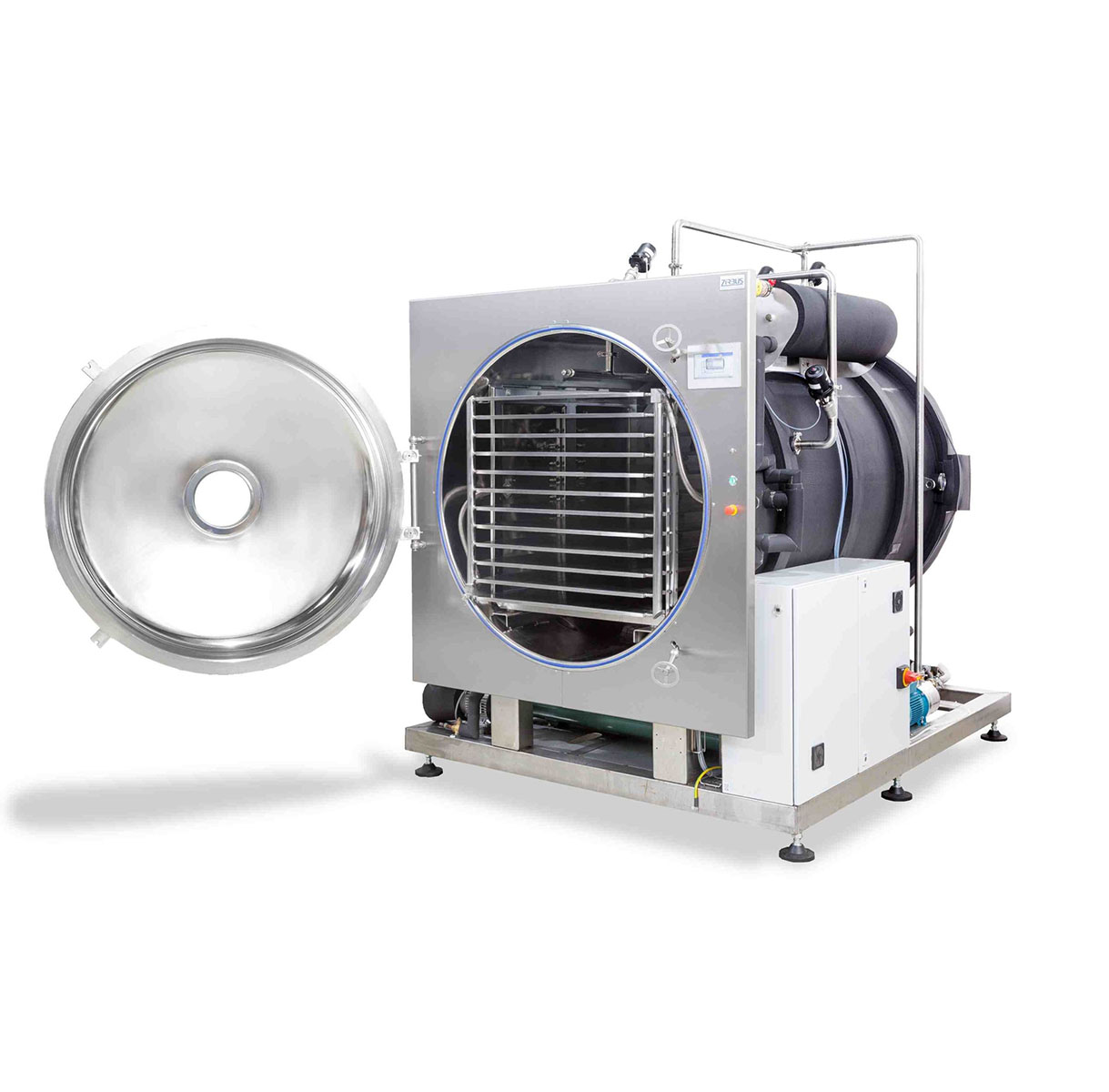

Zirbus Freeze Dryer Sublimator 100EKS

Max. condensor capacity: 150kg

Shelf area 10.0m²

Shelf Temp.: -40°C to +60°C /-55°C to +60°C

Condenser Temp.: -45°C /-75°C

One chamber system with integrated condenser behind the shelves

-  Liquid tempered controlled stainless steel shelves for freezing and drying

-  Industrial PLC control system with touchpanel

-  20 free programmable receipts

-  Integrated vacuum regulation

-  Complete stainless steel

Options:

1)Air- or watercooled compressor

2) GMP design, surfaces Ra <0,8µm electropolished

3) product trays

4) oilfree vacuum pumps

4) stainless steel housing or wall integration

5) Sealing system for vials

6) Steam sterilization SIP

7) GMP conform version, pharmaceutical sector
