Laboratory Freeze dryer
VaCo 5 & VACO 5-II
Zirbus
12 months

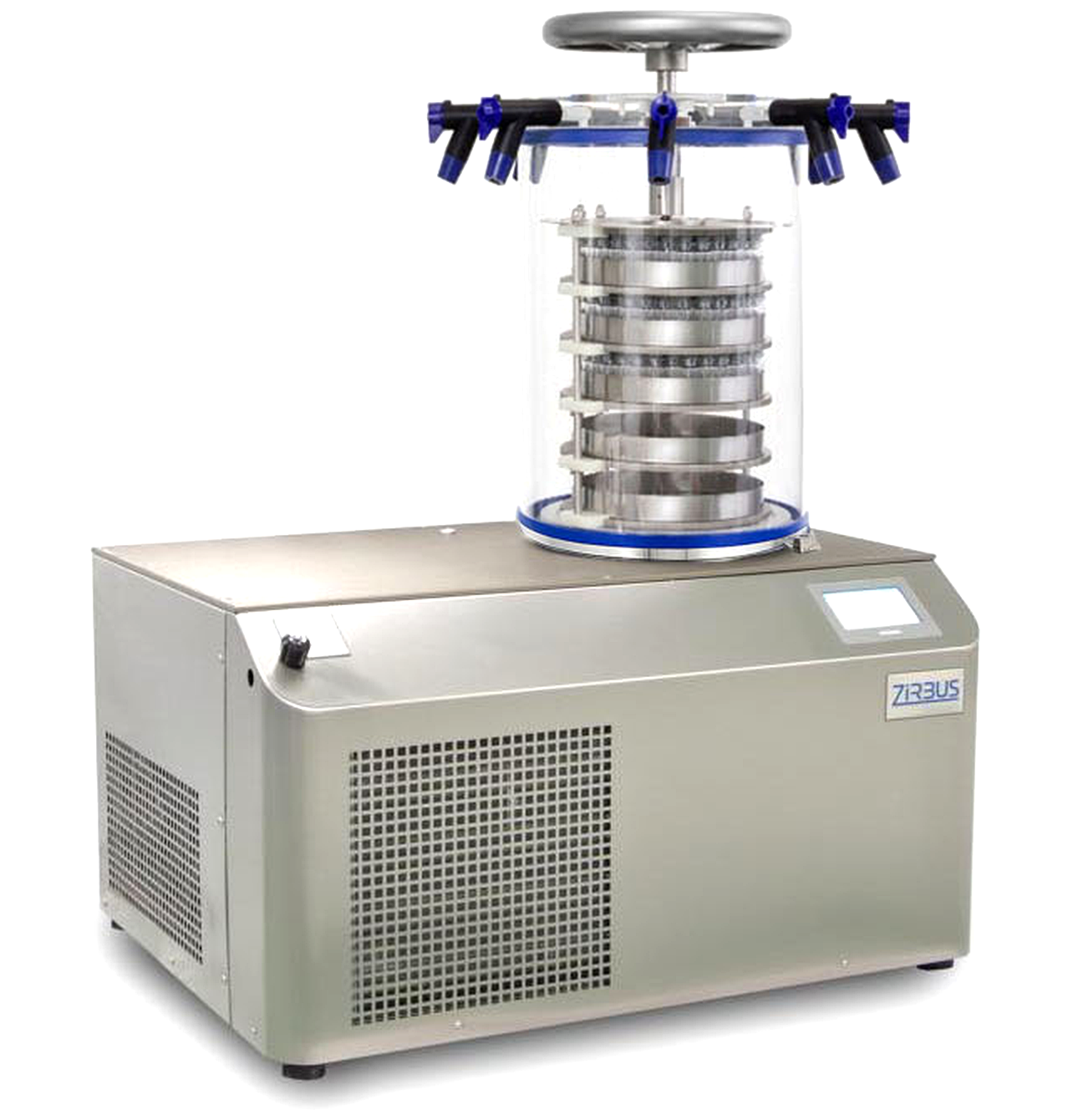

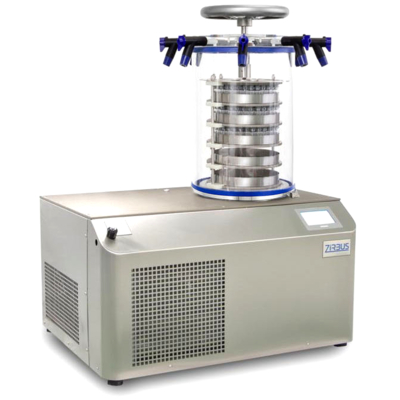

Zirbus Laboratory freeze dryer VaCo 5 with Modular system, main component is the condenser. Lab Freeze dryer, Freeze drying, Lyophilizer for laboratories...
|
|
VaCo 5 |
VaCo 5-II |
|
Dimensions |
Ø 270 x 280 mm |
Ø 270 x 280 mm |
|
Volume |
16 litres |
16 litres |
|
Temperature |
-50°C |
-80°C |
|
Ice capacity |
5kg/24h |
5kg/24h |
|
Max. ice |
6 kg |
6 kg |
|
Cooling system |
one- stage, |
two-stage, |
|
Outer |
705x420x425mm |
705x480x425mm |
|
Weight |
60 kg |
75 kg |
|
Electical connection |
230 V, 50/60 Hz |
230 V, 50/60 Hz |
-
Stainless steel manifold with 6 or 12 connections
-
Acrylic chambers Ø300mmx400mm or Ø400mmx500mm
-
Inner racks shelves Ø270mm or Ø370mm
-
Vial stoppering system
-
Vacuum regulation by magnetic valve
-
Vacuum pumps 5,10m³/h and chemical resistant type
-
Ampoules adapter 16
-
N2-liquid cooling with up to –150°C
Other options or accessories on request!
Control:
-
D: Microprocessor controller with 4 line LCD display for indication of condenser temp. and vacuum, integrated Pirani sensor 0.001…1000mbar
