Laboratory/Production freeze dryer

Laboratory/Production freeze dryer

(1 đánh giá)

VACO 10 & VACO 10-II

Zirbus

12 months

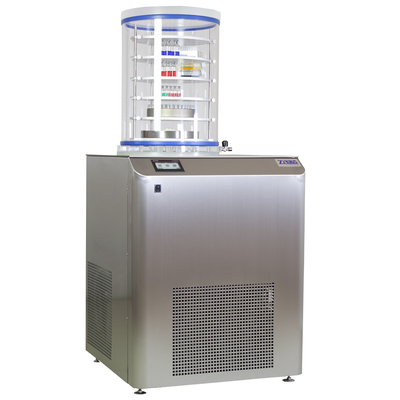

Zirbus Laboratory/Production freeze dryer VaCo 10 with Modular system, main component is the condenser. Laboratory freeze dryer, Production freeze dryer, Lyophilizer and Freeze dryer for laboratories.



VaCo 10

VaCo 10-II

Dimensions
of condenser

Ø 400 x 400 mm

Ø 400 x 400 mm

Volume

50 litres

50 litres

Temperature
of condenser

-50°C

-80°C

Ice capacity

10kg/24h

10kg/24h

Max. ice
capacity

12 kg

12 kg

Cooling system

one- stage,
free of CFC

two-stage,
free of CFC

Outer
dimensions (wxhxd)

800x1200x650mm

800x1200x650mm

Weight

75 kg

90 kg

Electical connection

230 V, 50/60 Hz

230 V, 50/60 Hz





  • Stainless steel manifold with 6 or 12 connections

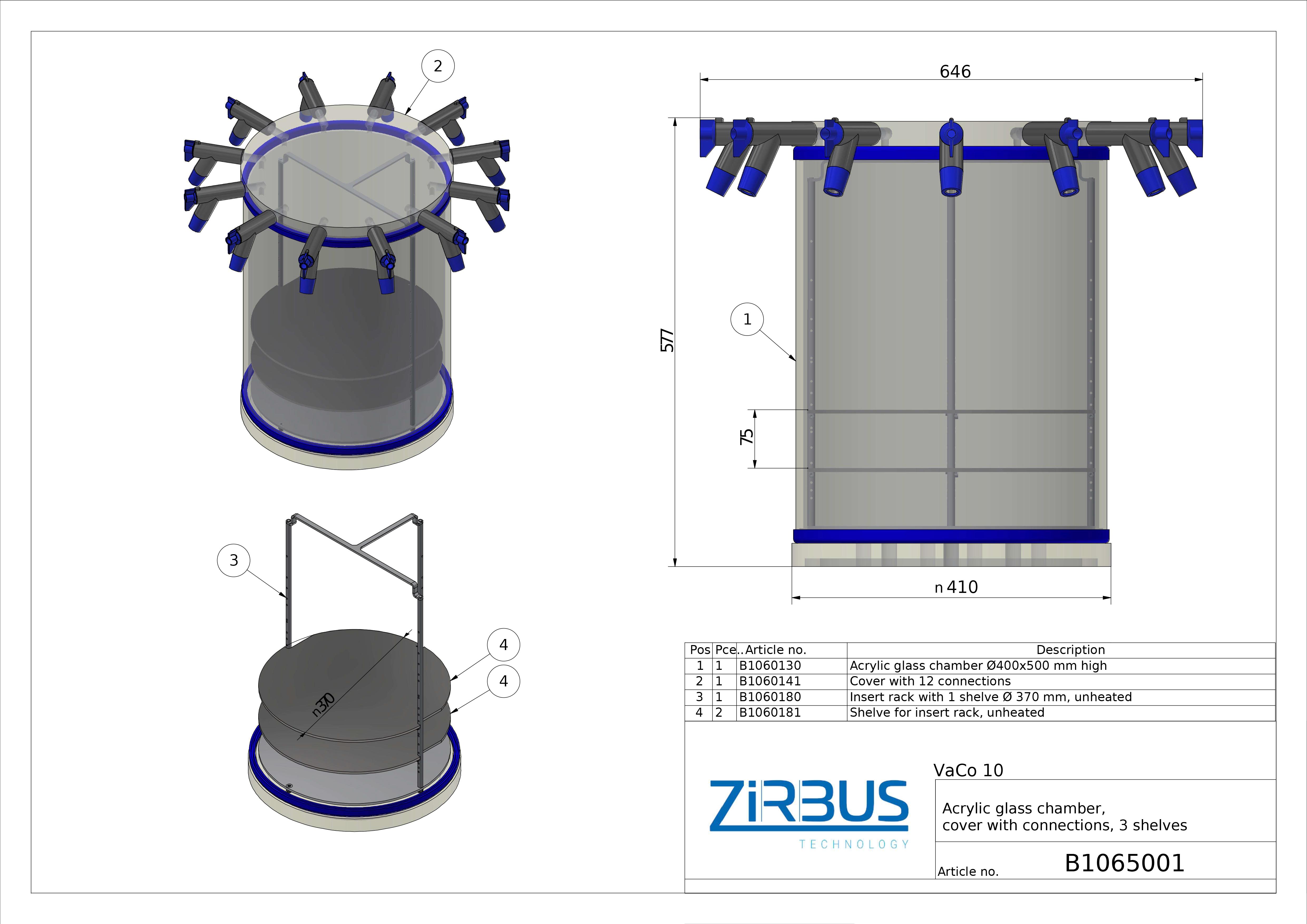

  • Acrylic chambers Ø300mmx400mm or Ø400mmx500mm

  • Inner racks shelves Ø270mm or Ø370mm

  • Vial stoppering system

  • Vacuum regulation by magnetic valve

  • Vacuum pumps 10,20,30m³/h and chemical resistant type

  • Ampoules adapter 16

  • N2-liquid cooling with up to –150°COther options or accessories on request!

Control:

D: Microprocessor controller with 4 line LCD display for indication of condenser temp. and vacuum, integrated Pirani sensor 0.001…1000mbar
