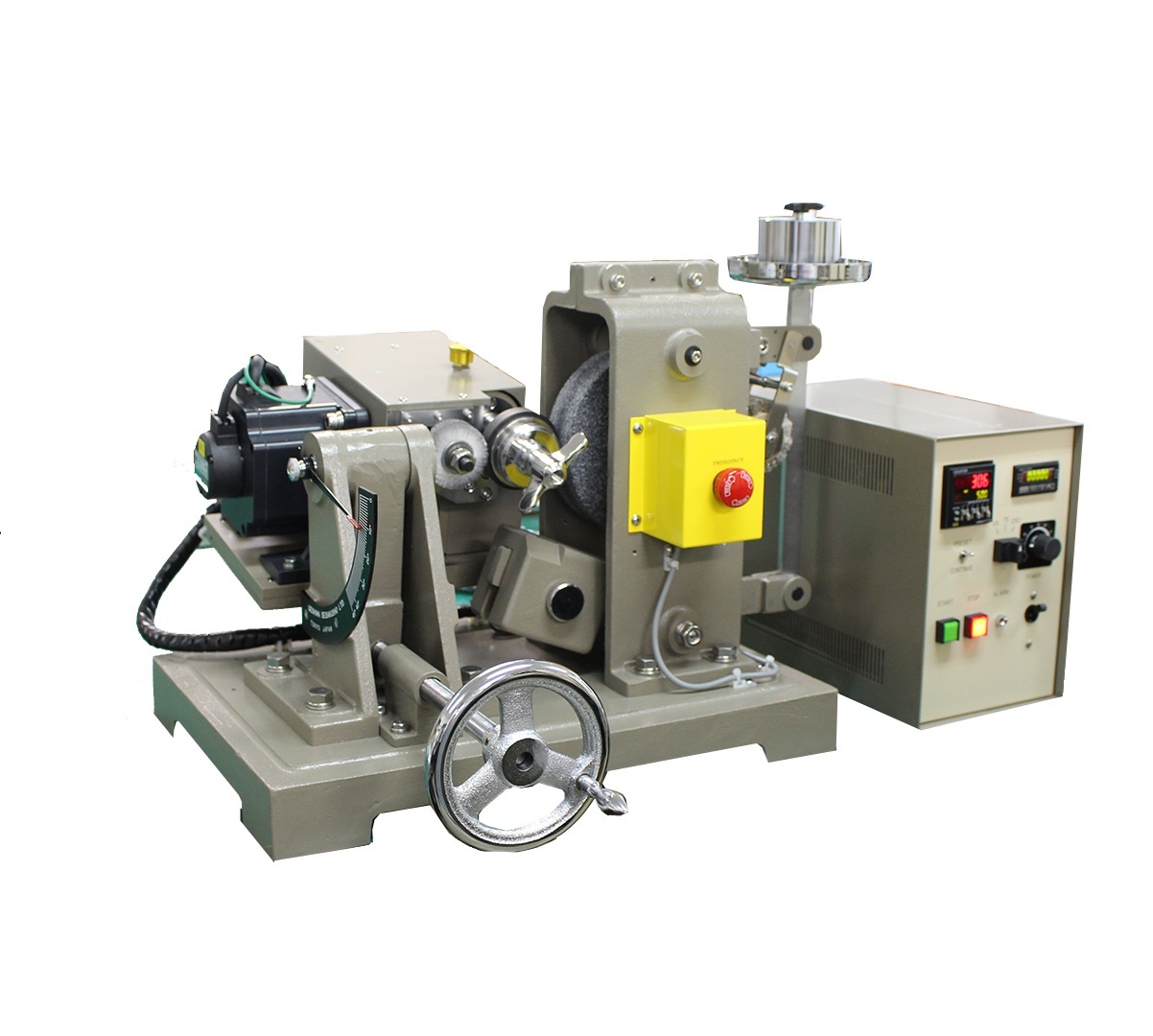

Akron Abrasion Tester

Catalogue

Akron Abrasion Tester is a widely used abrasion tester.

It rotates a disc shaped test piece at a constant speed, to which an abrasion wheel is pressed with a fixed load. The abrasion wheel is set at an angle to the test piece, and abrasion amount will be observed.

The model AB-1511 has a preset counter which will stop testing automatically when a set rotation is reached.

The model AB-1530 can set the test piece speed between 75 and 250rpm.

 Feature

• The simple and rigid design assures high repeatability and low noise for a long period of time.
• The optional aluminum core enables testing of samples taken from actual products.
• Two separate brushes remove abrasion powder from test piece and abrasion wheel.
• Brush for test piece can adjust pushing force to the test piece.
• Testing angle can be changed easily.

Specification

Applicable Standard:  JIS K6264-1,  JIS K6264-2, ISO 23794

Abrasion Wheel: 150mm dia., 26mm inner dia., 25mm or 38mm thick

Abrasive Material: Type A, grain size P36, binding P, organization 7 （A36-P7-V）, JIS R6210

Test Piece Speed:  75±5 or 250±5rpm (factory option)

Test Piece Angle:  0 to 45°

* Testing load:

27.0N or 44.1N (factory option),

Testing load is a load of abrasion wheel applied to the test piece.

Test Piece Size:  63.5mm dia., 12.7mm inner dia., 12.7mm thick

Rotation Counter: 6-digit preset counter

Power Supply: 100VAC 5A

Outer Dimensions:  Approx. W590mm×D580mm×H450mm

Weight Approx. 70kg

Accessories:

 -One power supply cable

-One dead weight (for 27N or 44.1N)

-Two pieces of wheel brushes

-One set of abrasion wheel

replacement tools

Options:

- Aluminum core for rectangular test piece

- Mold for test pieces: MD-4204(4 cavities), MD-4209 (9 cavities)
