TST -Taiwan Supercritical Technology Co., Ltd. offers SCF systems in any size and configuration. Although the size of a pilot system versus a production system is arbitrary, customarily, TST designates pilot systems as having extraction/reaction vessels 20 liters and 40  liters.

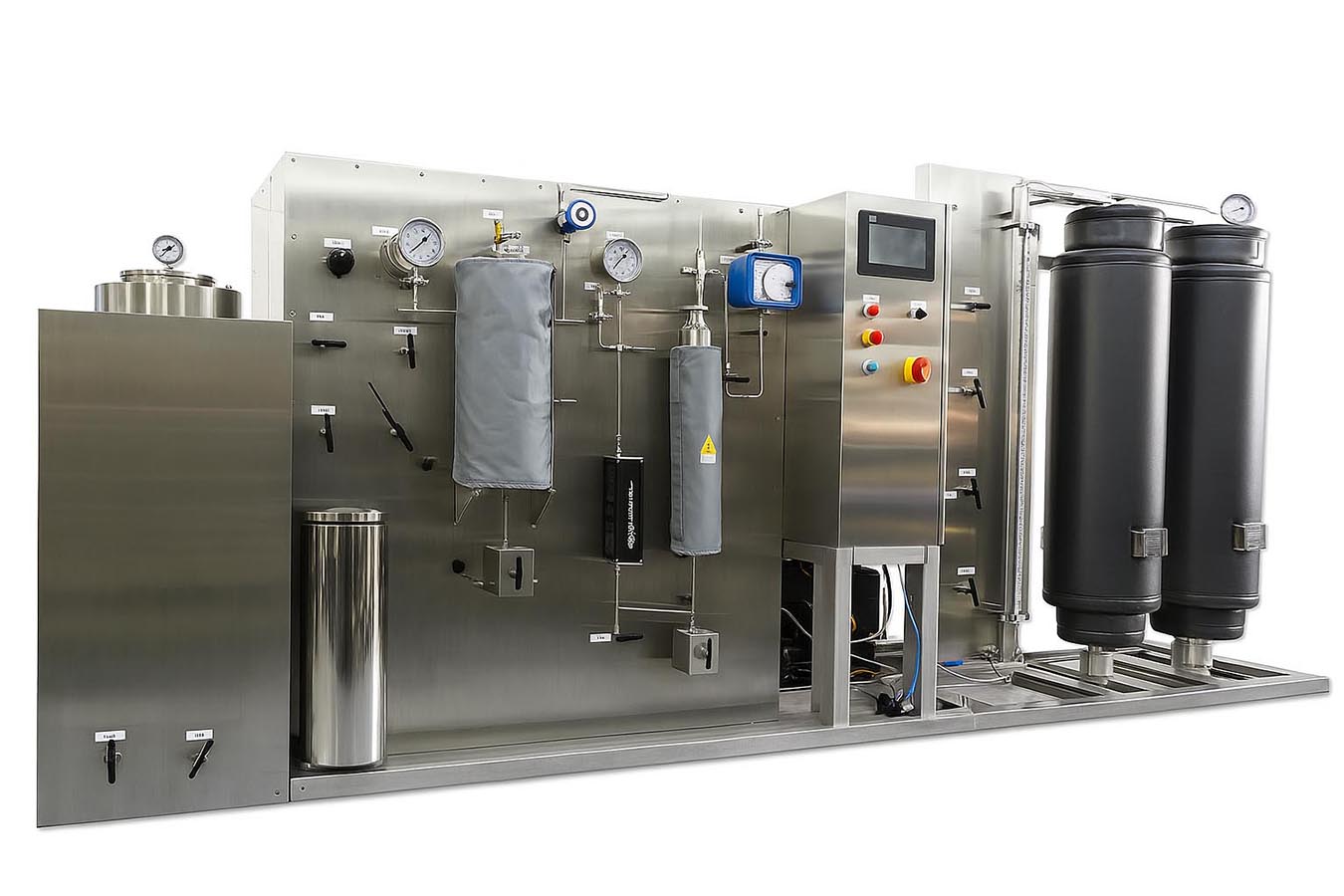

SCCO₂ 20L / 40L Extraction Equipment
Pilot Scale Extraction Equipment
Model No.: SE-201 / SE-202

General Information

  • Design and manufacturing conform to the U.S. ASME Code.
  • High-pressure extraction vessels are designed and manufactured in conformity with CNS9788 Taiwan Standards.

System Specifications

  1. Maximum extracting pressure: 500 bar (7,250 PSI)
  2. Maximum extracting temperature: 80°C
  3. Extraction vessel: 20L × 1 or 20L × 2
  4. Extraction basket volume: 18L × 1 or 18L × 2
  5. CO₂ (liquid) pump: 1 kg CO₂/min (maximum)
  6. Co-solvent pump: Flow rate 60 ml/min (maximum)
  7. Cooling system: Cooling capacity 4.6 kW
  8. Heating system: Electric heating
  9. CO₂ recovery system: Approx. 75% recovery rate via pressure differential
  10. Piping material: SUS316 (BA pipe)
  11. Frame and plate material: SUS304
  12. Overall dimensions: (L) 4,250 mm × (D) 1,000 mm × (H) 2,750 mm

Safety and Protection

  1. Rupture disk / Safety relief valve
  2. Automatic shutdown in case of overpressure

Control and Monitoring System

  1. Main control valve: High-pressure manual needle valve
  2. Temperature & pressure monitoring/control: 7” color touch panel HMI
  3. Flow rate monitor: Digital display on CO₂ gas flow meter (10–100 L/min)
  4. Liquid level monitor: Reflex liquid level gauge
  5. Electrical hoisting system: For convenient operation and handling

System Requirements

  1. Power supply: 220V, 50A
  2. Compressed air: 7–8 Kgf/cm²; 6.6 m³/min
