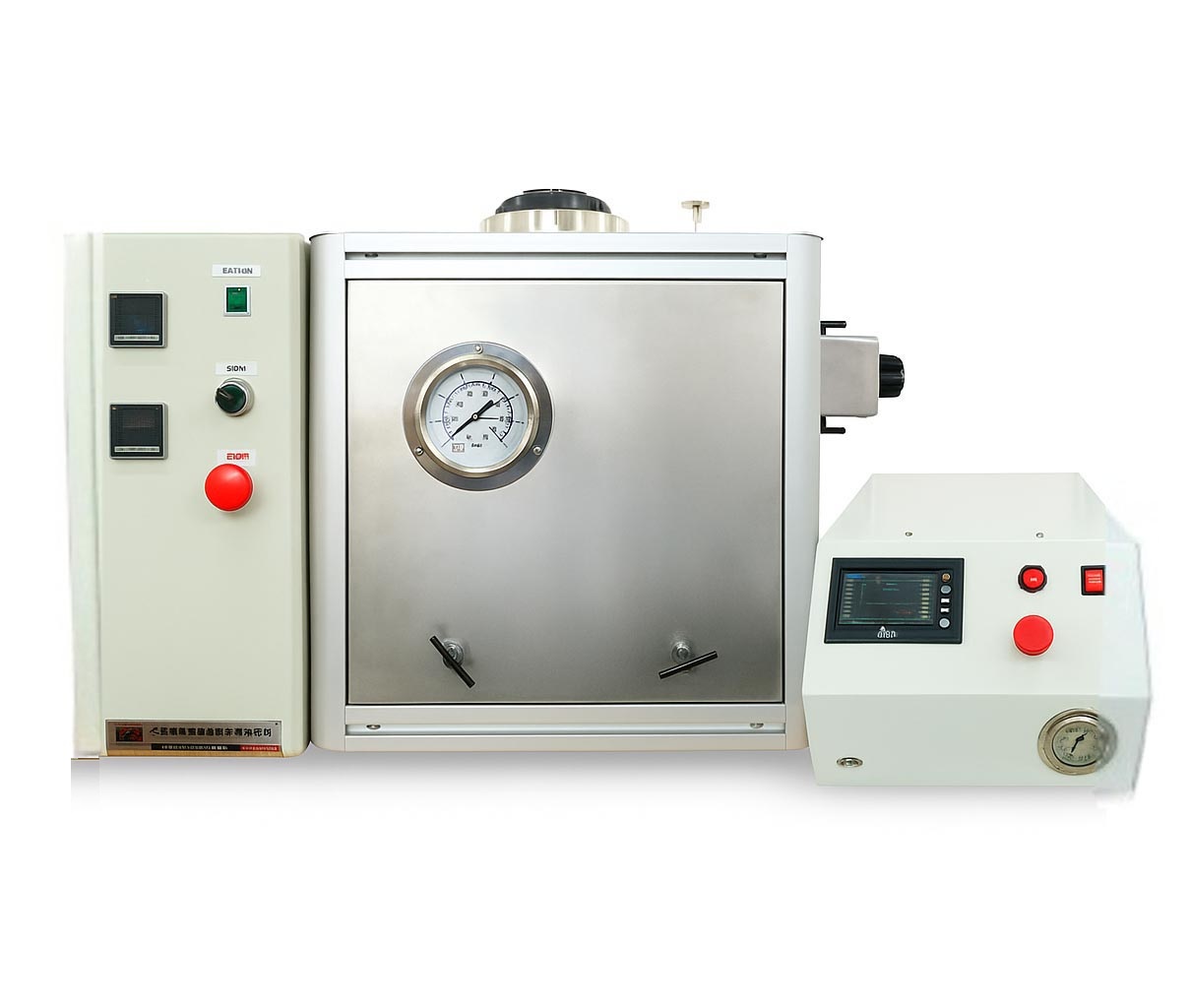

SE-2000–10000 Series supercritical fluid extraction

SCF CO₂ Extraction Equipment

Supercritical Fluid Preparative Scale CO₂ Extraction Equipment
Model No.: SE-2000–10000 Series

Information

Application Focuses

1. Chemistry laboratories
2. Chemical / food manufacturing plants
3. Sample extraction

Features

1. Easy to operate
2. Space-saving design
3. Flexible process configuration

Specifications

1. System Specifications

• Maximum Pressure: 7250 Psi / 500 Bar
• Maximum Temperature: 100 °C
• Dimensions: (L) 900 mm × (W) 650 mm × (H) 730 mm
• Certification: Entire system complies with CE, EN 61010-1:2010 + A1:2019, EN 61010-2-010:2014

2. Extraction Vessel – 3 L × 1 set

• Maximum Pressure: 7250 Psi / 500 Bar
• Maximum Temperature: 100 °C
• Volume: 2 L × 1 (inner basket)
• Material: Stainless steel
• Heating System: Electric heating

Collection System – 1 set

• CO₂ flow rate control valve × 1 set
• Control valve heating module × 1 set
• Designed for atmospheric collection

Pressure Control System: PM-10000C × 1 set
Cooling System: 1 set

3. Construction Materials

• Piping: SUS 304
• Frame Structure: Aluminum

4. Control System and Monitoring

• Control Valve: Manual type / high-pressure valve
• Temperature Control: Temperature controller with thermocouple
• Pressure Control: Pressure gauge / pressure transducer
• CO₂ Flow Control: Flow meter displaying gas CO₂ flow rate

5. Safety and Protection

• Rupture Disk: Set pressure 8500 Psig
• Heating Zone: Equipped with thermal isolation jacket

6. Utility Requirements (to be supplied by user)

• Power Supply: 220 V, 16 A
• Compressed Air: 7 kgf/cm²; 4 m³/min
• CO₂ Supply: Liquid CO₂ cylinder with internal tube

7. Optional Components (non-standard)

• Spare Parts: (e.g. seals, rupture disks, etc.)
• Co-solvent Pump Module

Digital Pressure Control Module (PM-10000C)

Applied Fluid

• Liquid Carbon Dioxide (LCO₂)

Specifications

1. System Output Pressure: 1000 – 10000 psi (depending on driving pressure)
2. System Output Flow Rate: 200 ml/min (up to 4350 psi)
3. Booster Pump: Included
4. Pre-cooler: Built-in (no external chiller required)
5. Piping: Seamless stainless steel tubing
6. Certification: Complies with CE, EN 61010-2-010 (2nd Edition) and EN 61010-1:2001
7. Dimensions: 360 mm × 600 mm × 270 mm
8. Weight: 30 kg

Control System

1. Color touch panel for pressure control and human-machine interface (HMI)
2. Programmable pressure control system
3. Proportional precise pressure regulation
4. Multi-step booster with instant adjustment / response control
5. Alarm and operation timer for abnormal conditions

Safety Protection

1. Overpressure alarm system
2. Emergency stop and automatic gas cut-off for overpressure
3. Safety relief valve for full-flow overpressure release

Utility Requirements

1. Power Supply: 110 / 220 V
2. Source Air: 5 – 8 kg/cm²
3. Chiller Water Temperature: ≤ 5 °C
