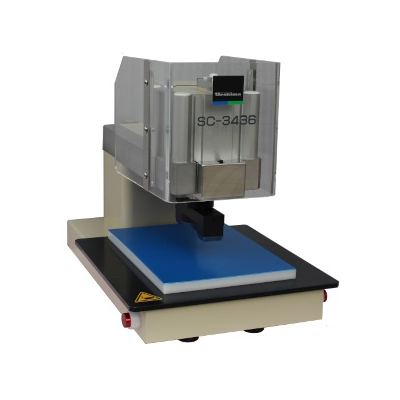

Pneumatic Drive Press Cutting Machine

Pneumatic Drive Press Cutting Machine

Model: SC-3436

Manufacturer: Ueshima - Japan

Catalogue

The Pneumatic Drive Press Cutting Machine is mainly applied for punching rubber sheets, soft plastics, film and other materials. Pneumatic pressure alone is used to ensure a compact size.

○Source of power requires only air pressure to operate this machine, and no electric power supply is needed.

○The machine can be put on a working table and is portable due to its compact size and right weight.

○Inexnexpensive compared with conventional cutting machines

○There are two buttons, two-hand operation, to control the equipment as for safety.

Test Piece Material: Rubber, Soft Plastics, Film, etc.

Cutting Shape:  Specified by JIS K 6251, JIS K 6252, ASTM etc.

（Cutting blades are optional． ）

Operation Two-hand operation

Air Cylinder:  Double-acting type, stroke 30 mm

Cutting Unit Fixture:  Φ25mm

Table Dimensions:  280× 280mm(cutting unit fixture at center)

Air Pressure 0.6MPa max. (mist and water eliminated dry clean air)

Air Connection 6-ｍｍ dia. one-touch joint

Dimensions 280(W)× 464(D) × 330(H) mm

Accessories 3 × PP sheets

1 × Duracon base
